6''-16bar TPU coal mining hose
6''-16bar TPU coal mining hose profiles

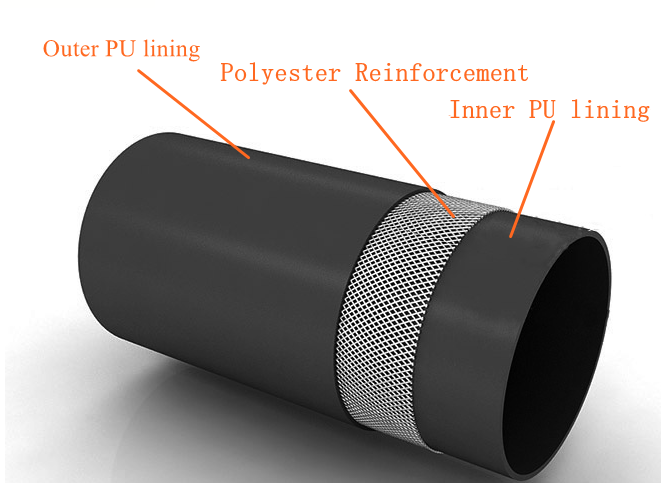

1. Structures: the outer jacket and inner are TPU , the middle weaved by the high strength tensile polyester/aramid wrap and weft fiber, both TPU cover are extruded through the weaved polyester. the following is the figure of hose:
2.Features: Flexible ,durable ,Light weight ,large hydraulic flow, anti-corrosion and oxidation, anti-aging, long using life, high strength tensile and support the higher hydraulic pressure. Easy equipment and withdraw, easily removable.
3. Application:Water supply of oil&gas field , agriculture irrigation, petroleum transfer, firefighting,flood and sewerage drainage, coal mining water disasters rescue,sea water transfer, industrial water discharge.
4. Hose data
| Size | Dia.(mm) | W.P(psi) | B.P (psi) | Wall-thickness(mm) | Unit Weight(Kg/m) | Max Length (m) | Avaliable Color |
| 6'' | 152∼154 | 240 | 730 | 3.3∼3.5 | 1.90 | 202 | Black,Red,Blue,Military Green |
5. Hose Application Cases
