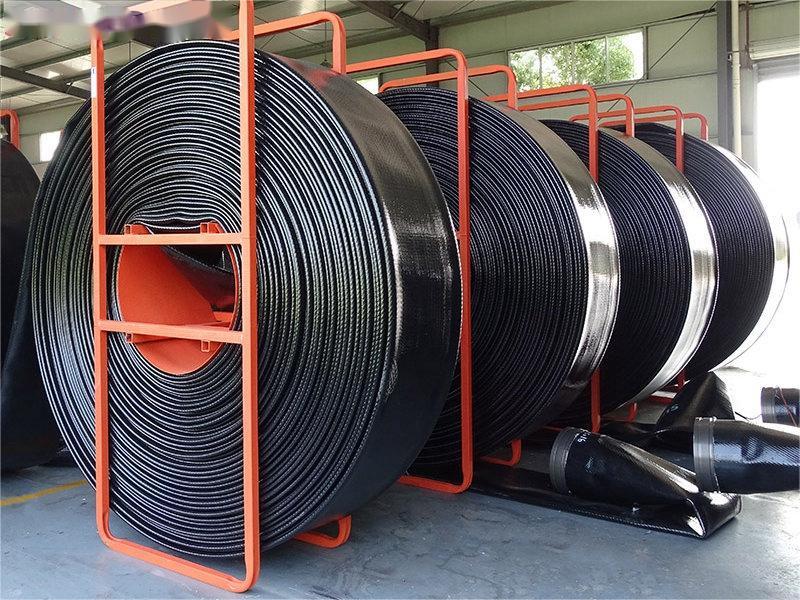

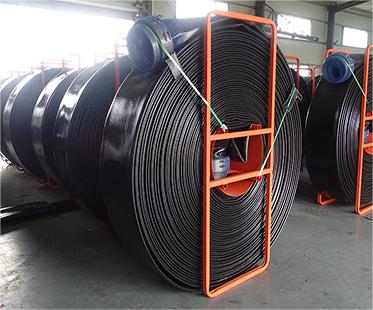

14''-10bar water transfer hose

14''-10bar water transfer hose

1. Hose Structures:the outer jacket and inner are TPU , the middle weaved by the high strength tensile polyester/aramid wrap and weft fiber, both TPU cover are extruded through the weaved polyester. 2. Hose datas : Dia.: 355mm-358mm,W.P:10 bar,B.P :31 bar , Max Length :202m, Unit Weight: 5.40Kg/m,Wall-thickness:5.0mm, Color: Black, Red, or Customization. 3.Features: Flexible ,durable ,Light weight ,large hydraulic flow, anti-corrosion and oxidation, anti-aging, high strength tensile. Easy equipment and withdraw, easily removable. 4. Application: coal mining water discharge, sea water transfer, industrial water discharge,petroleum transfer, firefighting,flood and sewerage drainage,,disasters rescue

Product Profile



1.Structures: the outer jacket and inner are TPU , the middle weaved by the high strength tensile polyester/aramid wrap and weft fiber, both TPU cover are extruded through the weaved polyester.































2.Features: Flexible ,durable ,Light weight ,large hydraulic flow, anti-corrosion and oxidation, anti-aging, long using life, high strength tensile and support the higher hydraulic pressure. Easy equipment and withdraw, easily removable.

3. Application:Water supply of oil&gas field , agriculture irrigation, petroleum transfer, firefighting,flood and sewerage drainage, coal mining water disasters rescue,sea water transfer, industrial water discharge.

4.Technical Data

Size    Dia.(mm) W.P( Bar) B.P(Bar) Wall-thickness(mm) Unit Weight(Kg/m) Max Length (m)             Avaliabe Color
 14''    355∼358         3           9             1.6∼1.7                  1.80             202               Red ,Orange
 14''    355∼358       10          31             5.0∼5.1                  5.40              202                Black,Red.Orange
 14''    355∼358       14          42             5.2∼5.4                  6.00              202                Black,Red,Orange
