16''-10 bar TPU mining water hose

16''-10 bar TPU mining water hose

1. Hose Structures:the outer jacket and inner are TPU , the middle weaved by the high strength tensile polyester/aramid wrap and weft fiber, both TPU cover are extruded through the weaved polyester. 2. Hose datas : Dia.: 406mm-409mm,W.P:10 bar,B.P :31 bar , Max Length :202m, Unit Weight: 6.2Kg/m,Wall-thickness:4.2mm, Color: Black, Red, or Customization. 3.Features: Flexible ,durable ,Light weight ,large hydraulic flow, anti-corrosion and oxidation, anti-aging, high strength tensile. Easy equipment and withdraw, easily removable. 4. Application: coal mining water discharge, sea water transfer, industrial water discharge,petroleum transfer, firefighting,flood and sewerage drainage,,disasters rescue

Product Profile

16''-10 bar  TPU Layflat hose profiles



  1. Hose Structures :  the outer jacket and inner are TPU , the middle weaved by the high strength tensile polyester/aramid wrap and weft fiber, both TPU cover are extruded through the weaved polyester by the Extruding machines,the polyester weaved by the high speed looms. the following is the figure of TPU layflat hose:
  2. Features: Flexible ,durable ,Light weight ,large hydraulic flow, anti-corrosion and oxidation, anti-aging, long using life, high strength tensile and support the higher hydraulic pressure. Easy equipment and withdraw, easily removable.

  3.  Application : Water supply of oil&gas field , agriculture irrigation, petroleum transfer, firefighting,flood and sewerage drainage, coal mining waterdischarge, disasters rescue,sea water transfer, industrial water discharge.

  4. Technical Data
     Size  Dia(mm)   W.P(bar) B.P( bar)    Wall-thickness(mm) Unit weight(Kg/m) Max length (m)                     color
      16''  406∼409       10     31         4.1∼4.3       6.10∼6.30        202       Black,Red,or Customize

5. Hose Application cases :

Case 1 :

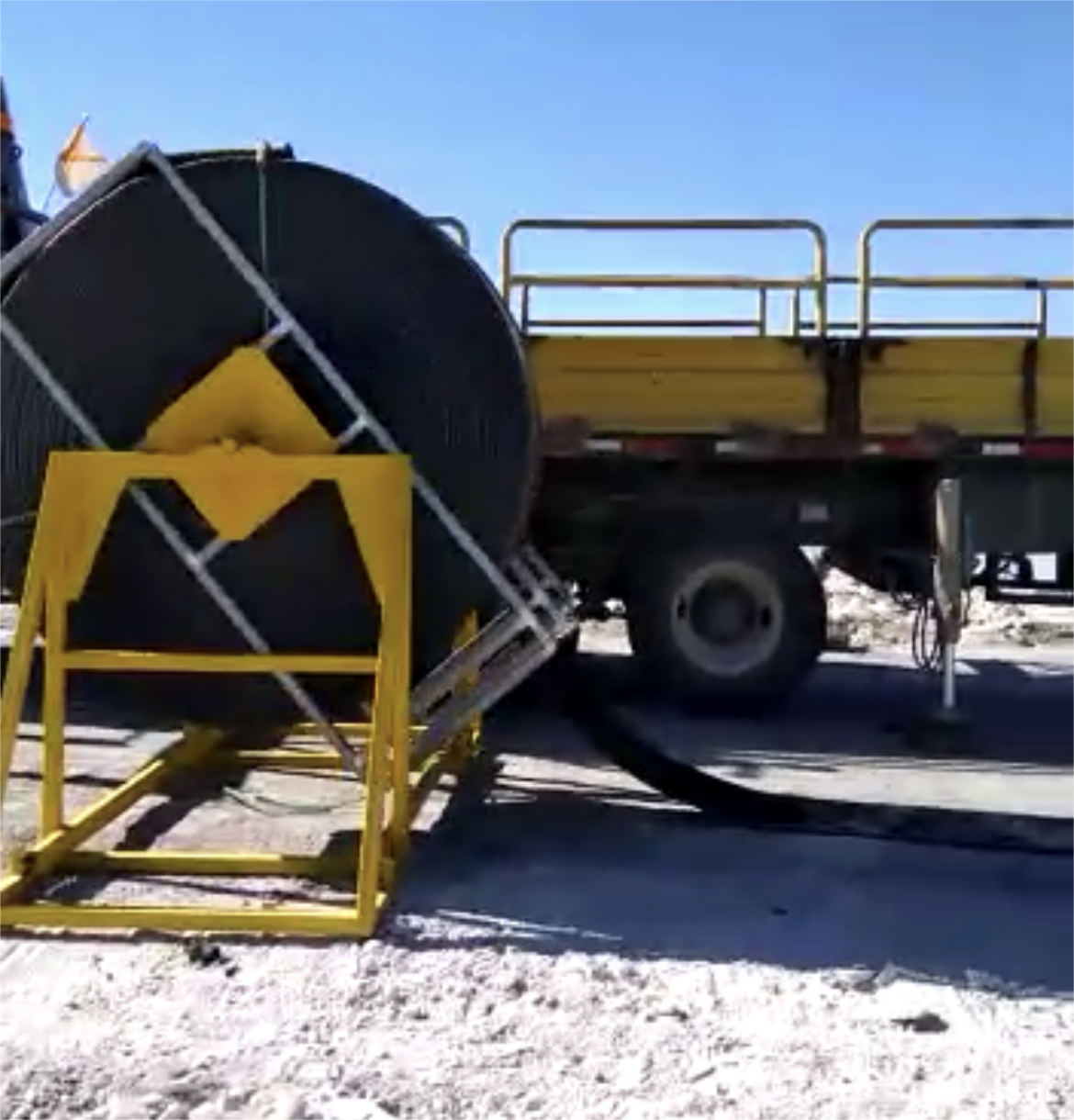

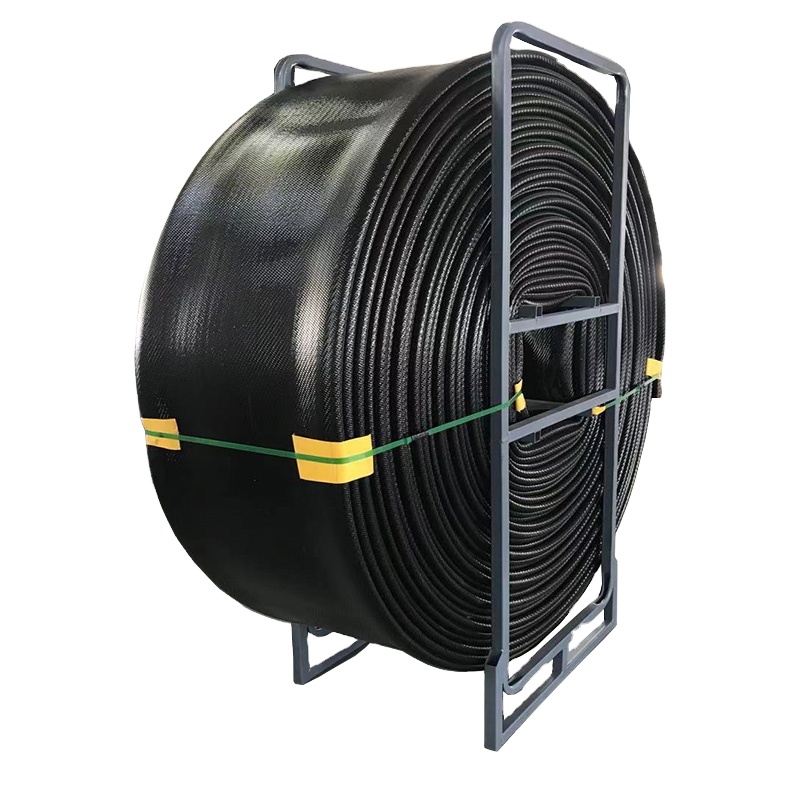

16'' -10 bar TPU layflat hose used in Argentina Mining projects, it is equipped with the LDHC couplings and ANSI Standard Flange couplings , and packed onto the big rectangle hose.  reels

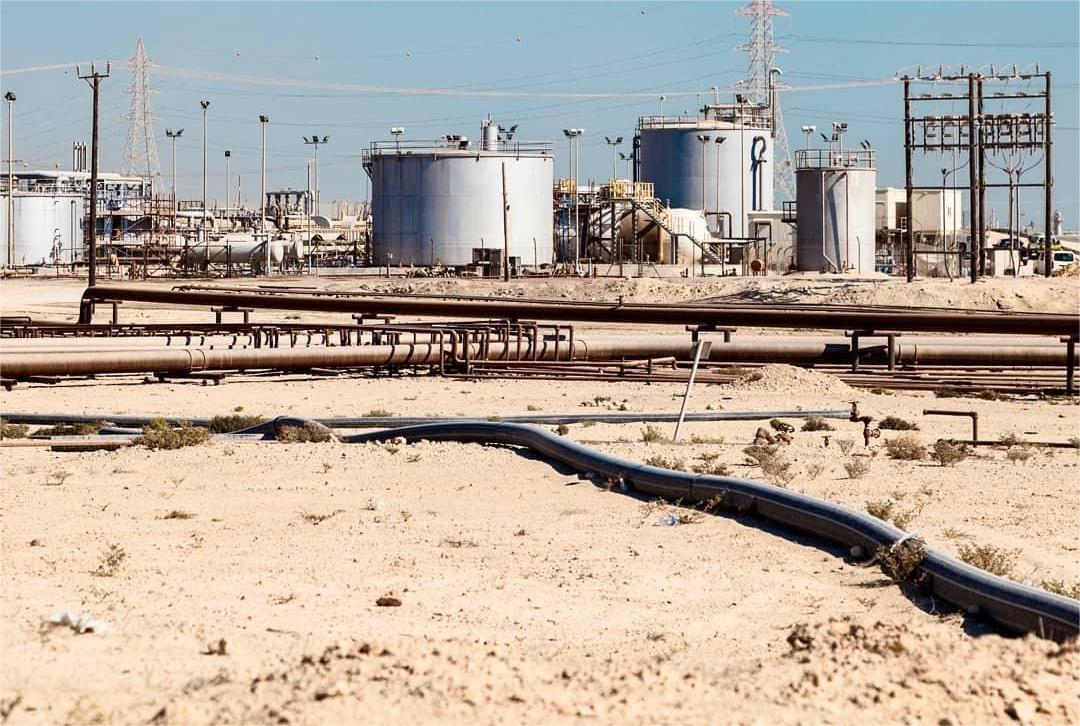

Case 2 : 16'' 10 bar hose used in the Texas Oilgas field for the fracturing water supply
