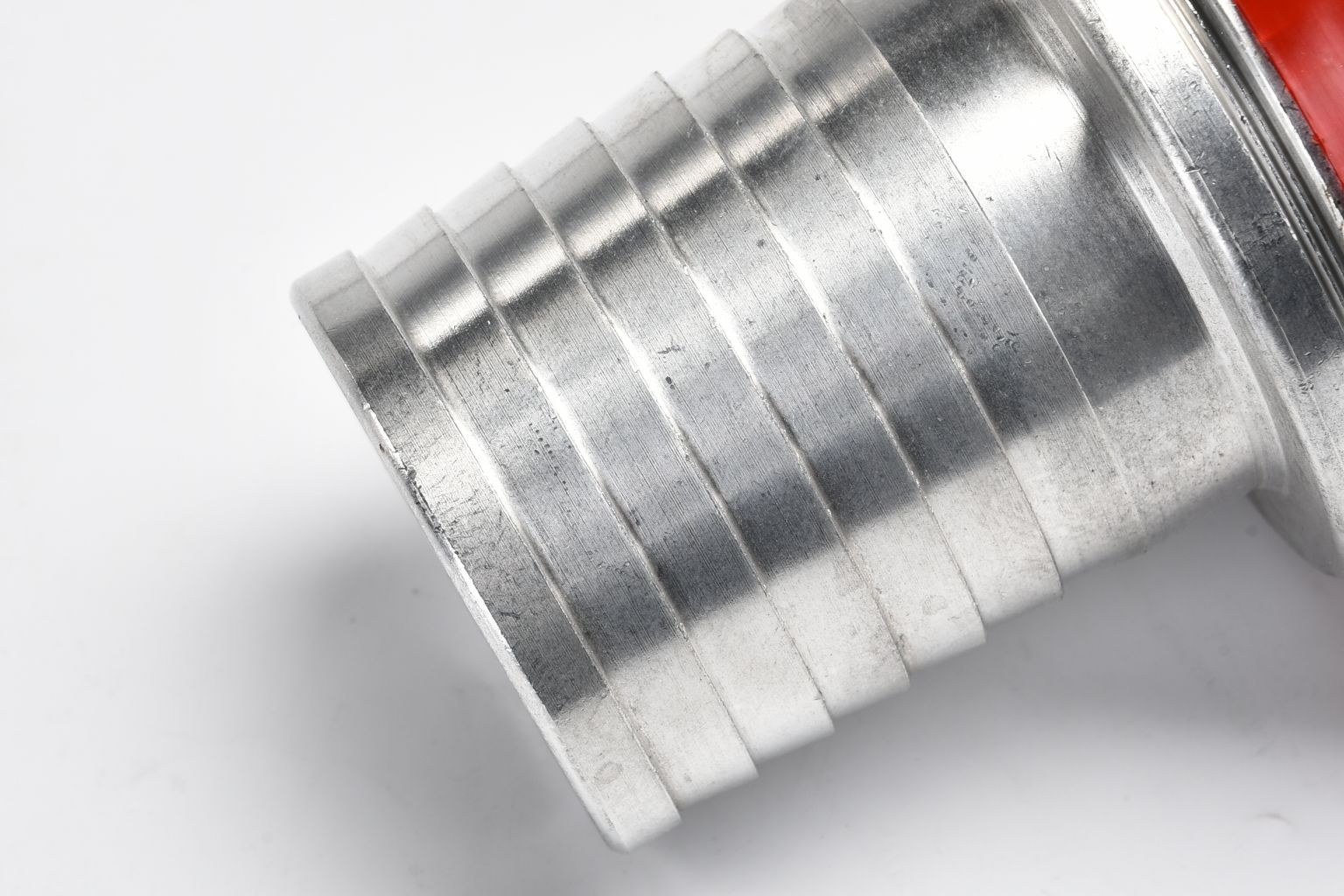

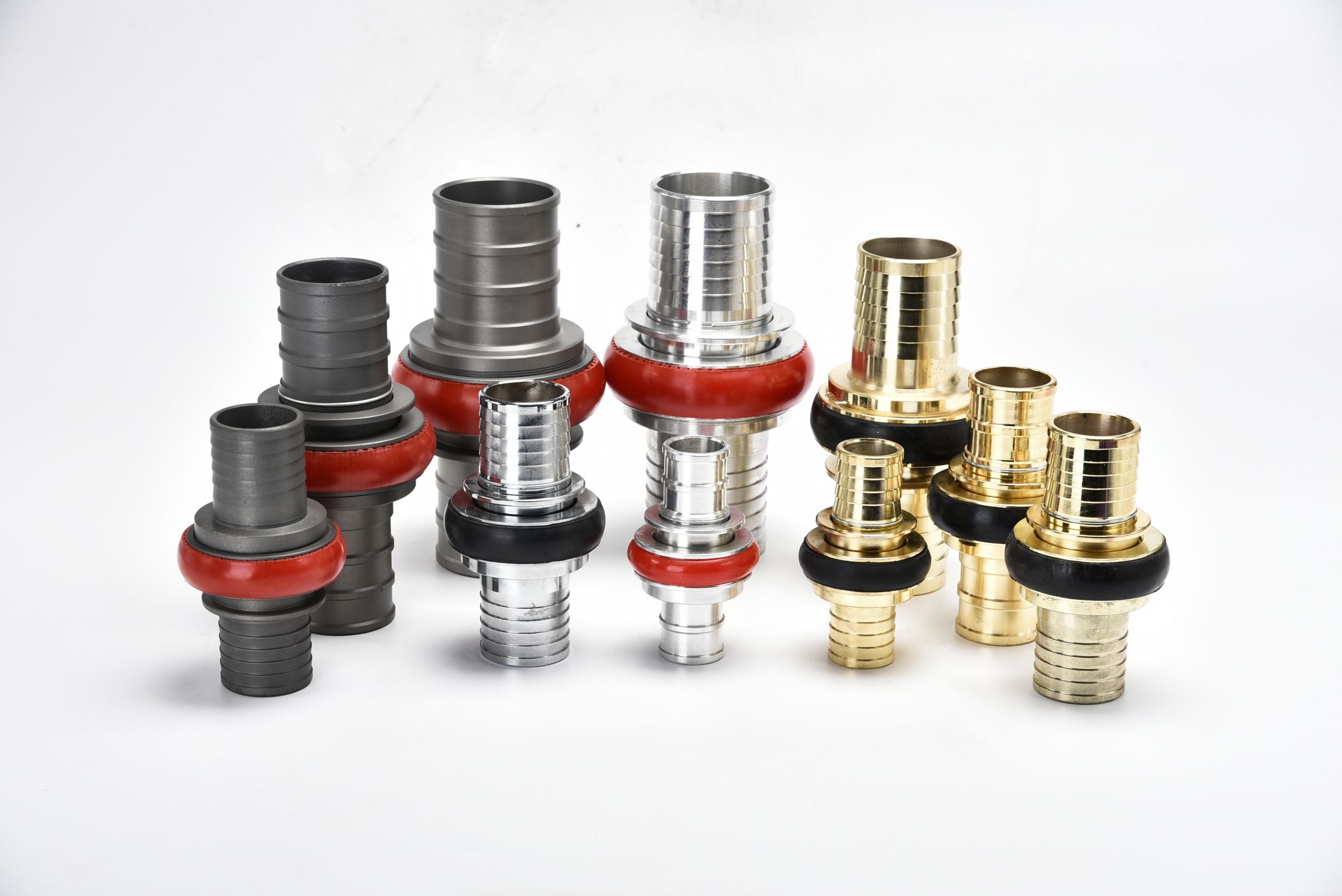

Machino Hose Coupling
Machino Hose Coupling
1. Material : Forged Aluminum /Brass
2. Structures and Data

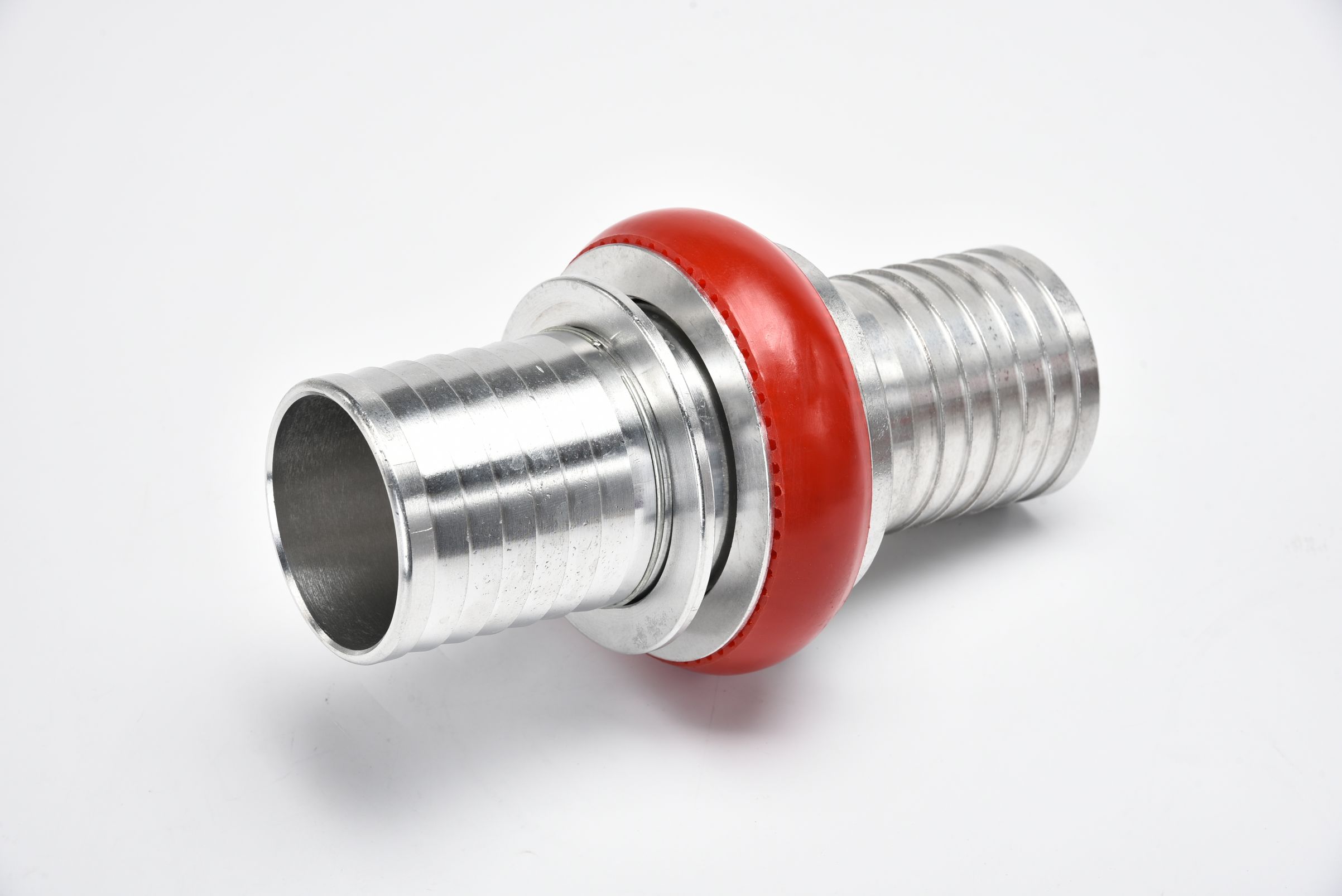

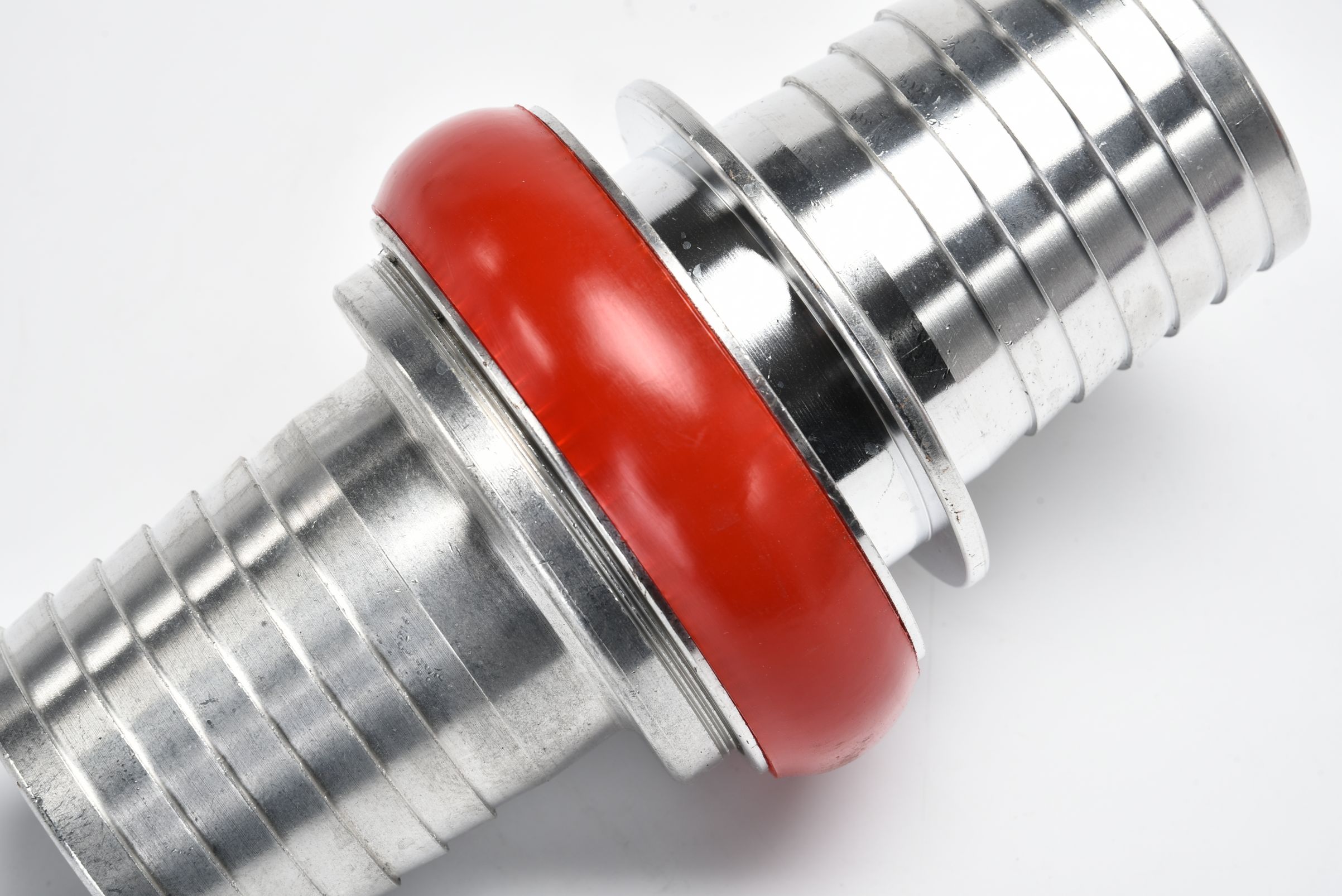

(1) KDK Hose Coupling
| No. | Specification | D(mm) | d(mm) | L(mm) |
| 1 | KDK40Z(1.5‘’） | ∅78 | ∅38 | 125 |
| 2 | KDK50Z（2‘’） | ∅94 | ∅51 | 161 |
| 3 | KDK65Z（2.5‘’） | ∅114 | ∅63.5 | 210 |
| 4 | KDK80Z（3‘’） | ∅129 | ∅76 | 232 |
| 5 | KDK100Z（4‘’） | ∅167 | ∅101 | 291 |
3. Work Pressure: 10bar ,14bar ,16bar ,20bar
4. MOQ: 20PCS
5. Payment Terms : 30% deposit and 70% be paid before shipment.
6. Warranty : 24 months
7. Delivery Time: within 3 days after the deposit payment
