10'' (250mm) TPU layflat hose is processed by the "extruding through the polyester weaves", it makes hose body combine mutually closely, very strong and higher adhesion ,durable. It equipped with Anodizing Forged Aluminum Hose couplings, they will work efficiently in the oilfield,shale gas fracturing fileds
Hose profiles
1. Hose Composition
The outer jacket and inner are TPU , the middle weaved by the high strength tensile polyester/aramid wrap and weft fiber, both TPU cover are extruded through the weaved polyester.

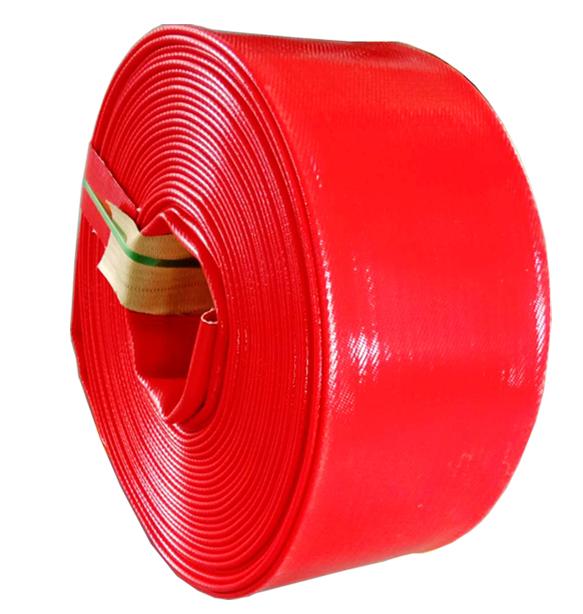

The Figure of TPU layflay hose
2.Features: Flexible ,durable ,Light weight ,large hydraulic flow, anti-corrosion and oxidation, anti-aging, long using life, high strength tensile and support the higher hydraulic pressure. Easy equipment and withdraw, easily removable.
3. Application:Water supply of oil&gas field , agriculture irrigation, petroleum transfer, firefighting,flood and sewerage drainage, coal mining water disasters rescue,sea water transfer, industrial water discharge.
4. Technical Datas
| Size | Dia.(mm) | W.P (psi) | B.P (psi) | Wall-Thickness (mm) | Unit Weight (Kg/m) | Max Length (m) | Avaliable Color |
| 10'' | 254∼256 | 150 | 480 | 3.5∼3.7 | 3.00 | 202 | Black,Red, Blue or customized |
5. Application Cases
