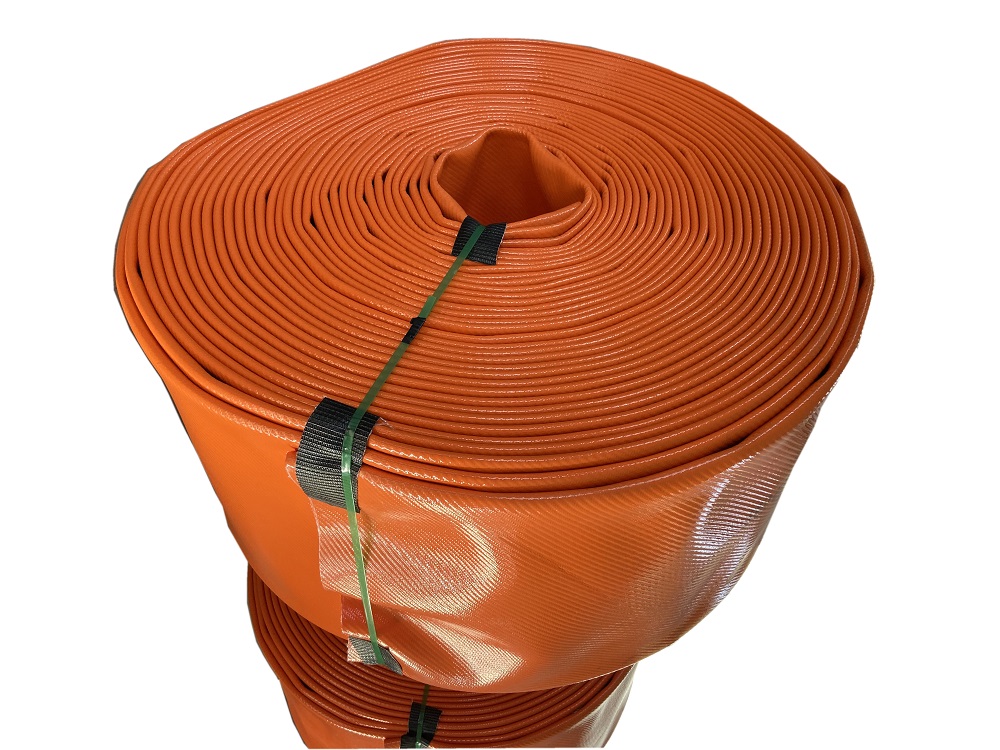

20'' -5bar PU Water Hose

20'' -5bar PU Water Hose

20'' -5bar PU Water Hose flood water discharge hose

Product Profile

20'' -2bar PU Water Hose flood water discharge hose profiles



1.Structures: the outer jacket and inner are TPU , the middle weaved by the high strength tensile polyester/aramid wrap and weft fiber, both TPU cover are extruded through the weaved polyester.

2.Features: Flexible ,durable ,Light weight ,large hydraulic flow, anti-corrosion and oxidation, anti-aging, long using life, high strength tensile and support the higher hydraulic pressure. Easy equipment and withdraw, easily removable.

3. Application:Water supply of oil&gas field , agriculture irrigation, petroleum transfer, firefighting,flood and sewerage drainage, coal mining water disasters rescue,sea water transfer, industrial water discharge

4. Hose technical Data

Size Dia.(mm) W.P( bar) B.P (bar) Wall-thickness (mm)    Unit Wight (Kg/m) Max Length (m)  avaliable Color
20″ 500∼508 5 15 5.0∼5.5 6.8∼7.0 120 Orange ,Red
